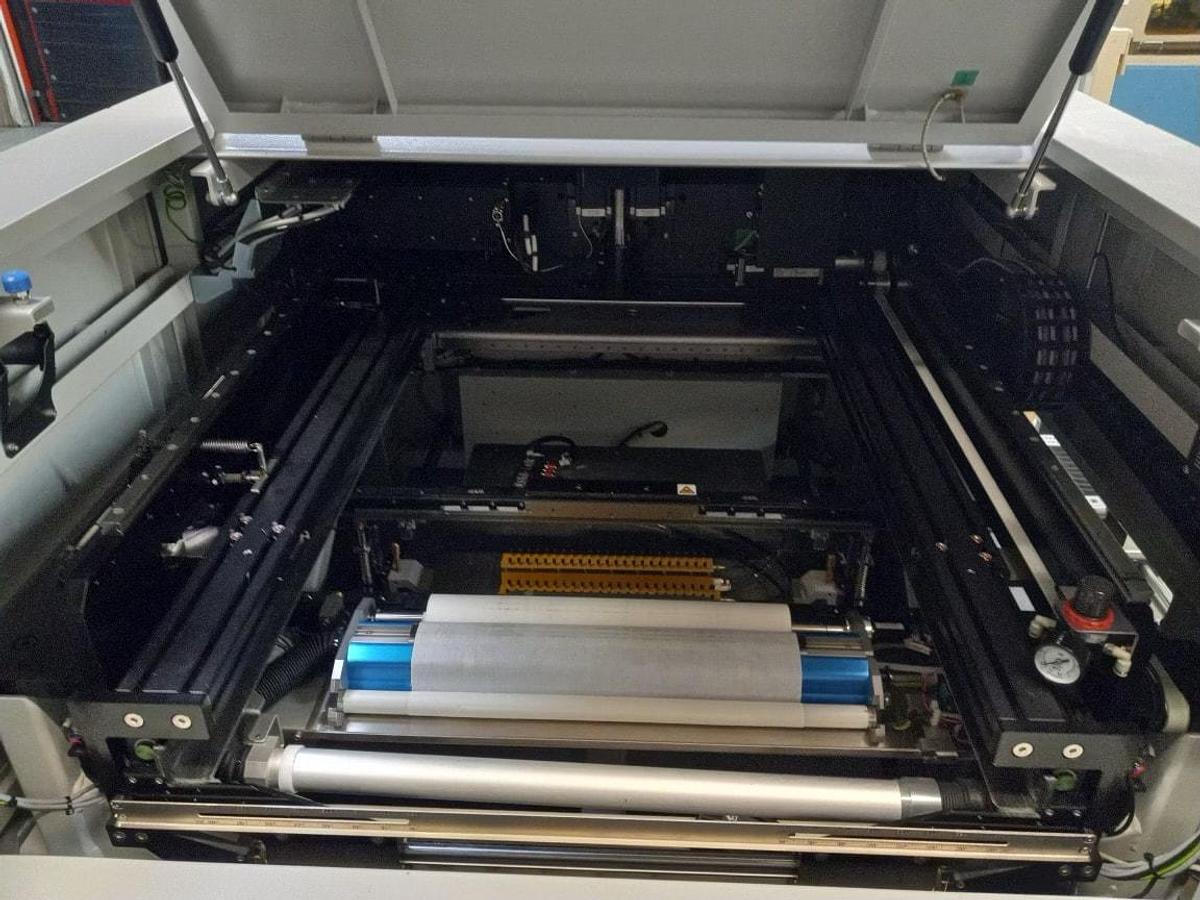

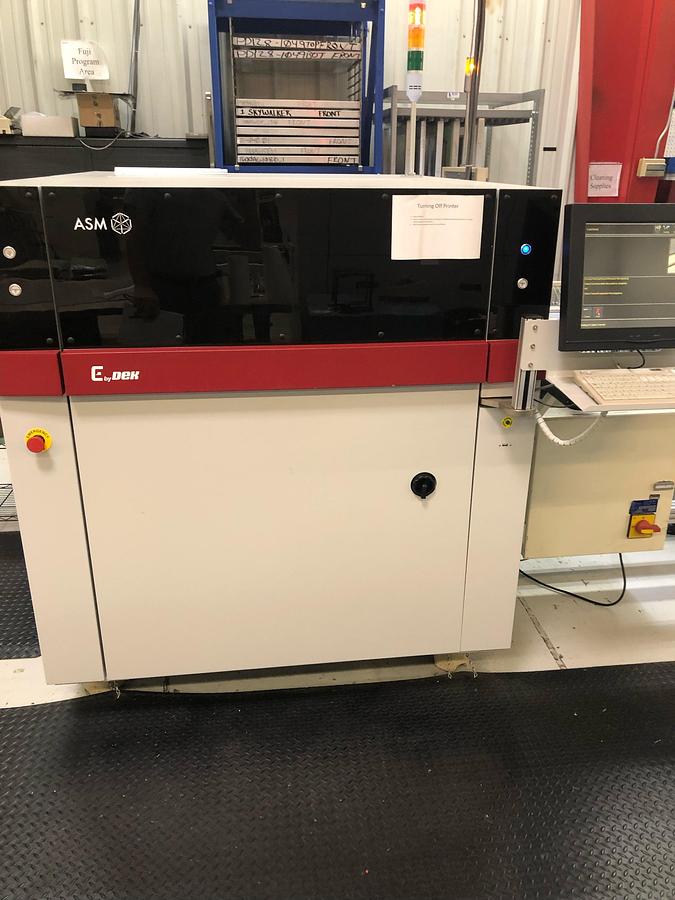

(SOLD) 2019 ASM-E by DEK Screen Printer

Alignment

 > 2.0 Cmk @ ± 12.5 μm (± 6 sigma)

System alignment capability > 2.0 Cmk @ ± 25 μm (± 6 sigma)

Optimum core cycle time8 seconds

Substrate size 50 mm (X) x 40.5 mm (Y) to 620 mm (X) x 508.5 mm (Y)

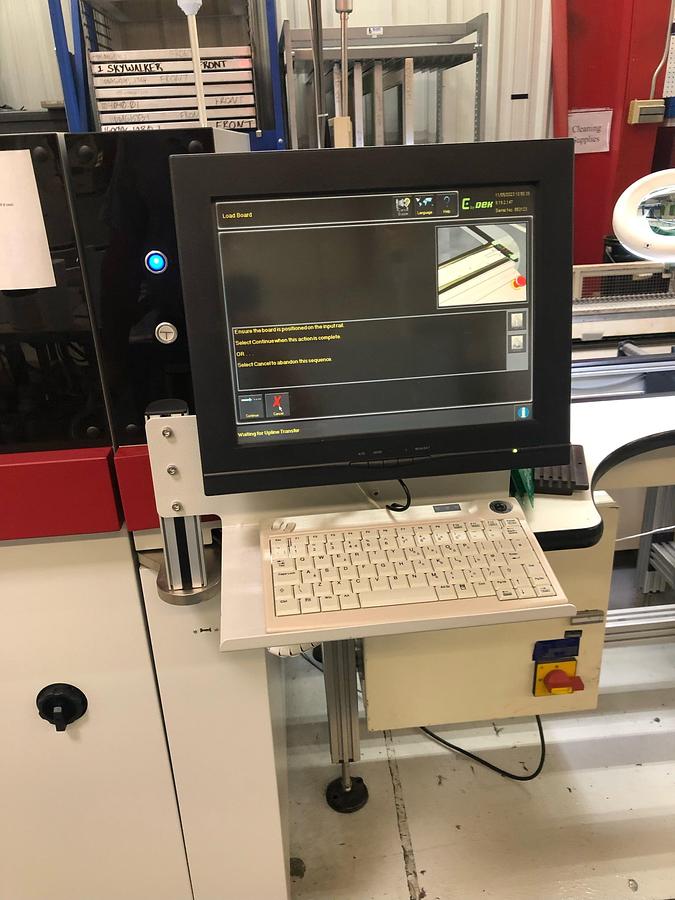

Operating SystemWindows 7

EmbeddedSqueegee pressure mechanismSoftware-controlled, motorized with closed loop feedback Stencil positioning Semi-auto stencil load with drip tray Understencil cleaning

Interchangeable understencil cleaner (IUSC), fully programmable with wet/dry/vacuum wipe

Adjustable-width stencil mount (AWSM)Frame variants - fully adjustable to accommodate frame sizes in the range of 381 mm to 736 mm

Substrate thickness0.2 mm to 6 mm

Substrate weight (maximum)6 kg

Substrate warpageUp to 7 mm including substrate thickness

Substrate fixture

Over the top clamp

Edge clamp

Foil-less clamp

Vacuum

Temperature & humidity sensorMonitoring of the process environment
