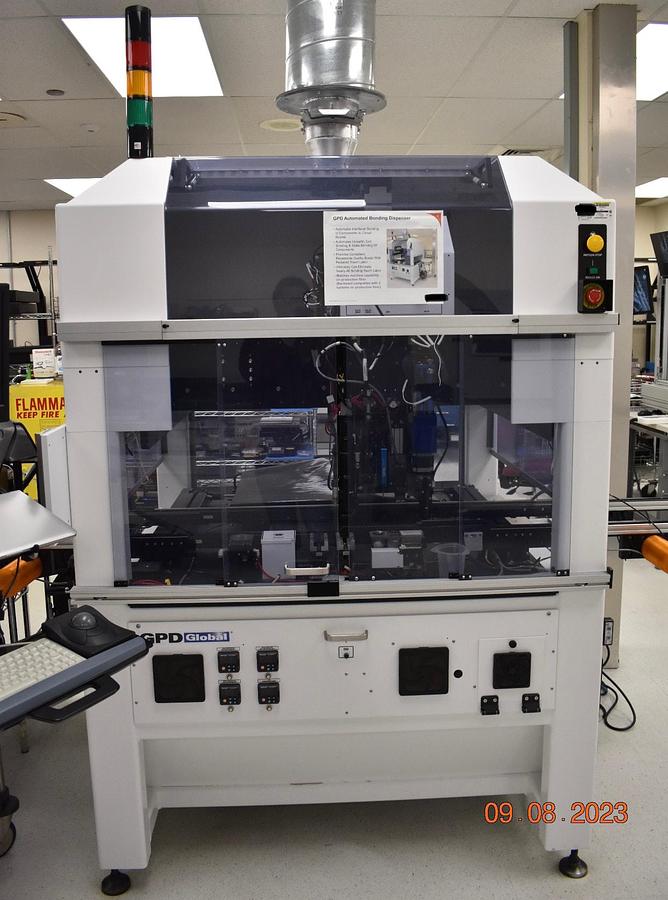

(SOLD) 2017 GPD DS Series Dispense system

MACHINE IS SOLD. CONTACT US AND WE WILL BE HAPPY TO HELP YOU FIND A SIMILAR MACHINE!

"Our DS Series dispense systems are robust, large format platforms that handle all types of applications with ease. Ideal for dispense applications utilizing adhesive, solder paste, conductive adhesive, potting compounds, and more."

Inline model is SMEMA compatible

preheat

3 Pump Stations

24"x24" Work Surface (Max Board)

Positioning Accuracy ± 0.0015″ (± 0,0381 mm)

Repeatability ± 0.0006″ (± 0,0152 mm)

Automatic Vision Alignment System (GPD Cyclops system) and Pattern Recognition Trainer

Red/Blue Illuminator

Needle Cleaner

Backlit Auto Calibration Station for automatic X,Y,Z needle calibration

Station 1 Taper-Lock Mounting Hardware

Easy Programming of dots, lines, fills, arcs, etc. through GPD Global FLOware Operating Software

TCP/IP Network Ready

Welded Steel Frame

Second Internal Hard Drive for Backups

Interior Lighting

Interlocked Safety Barriers for Operator Safety

X-Y-Z Brushless Servo Motors with Precision Ball Screws

Linear Speed up to 20 inches/second (508 mm/second)

3-Color Status Light Tower – Red, Amber, Green

Pentium PC and Color, Flat Panel Monitor

Easy Access Electronics Drawer

Real-Time Editor while system is in production

Start Up & Leveling Kit

1 USB copy of DS Series Documentation for Installation, Operation, and Maintenance

CE Declaration of Conformity

115 VAC 60 Hz or 230 VAC 50 Hz

MACHINE OPTIONS:
SPECS:
