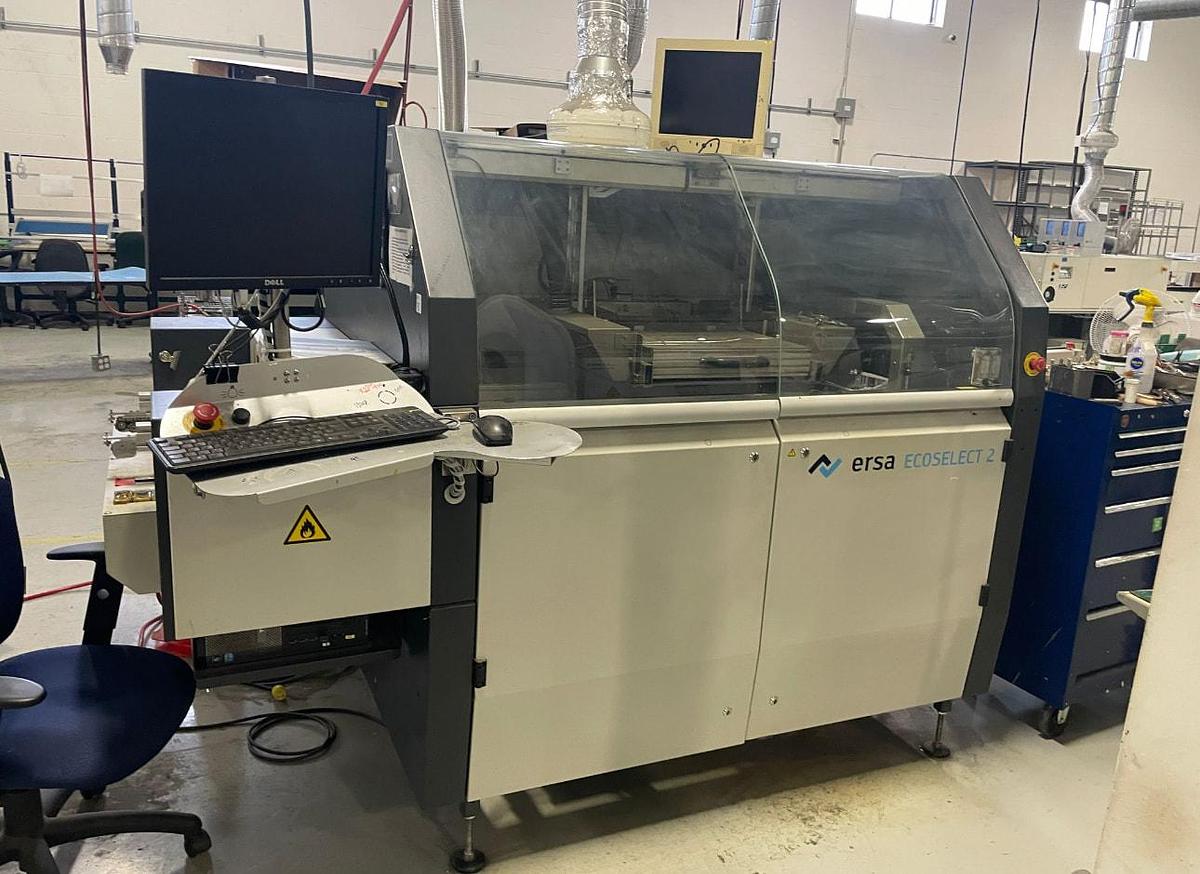

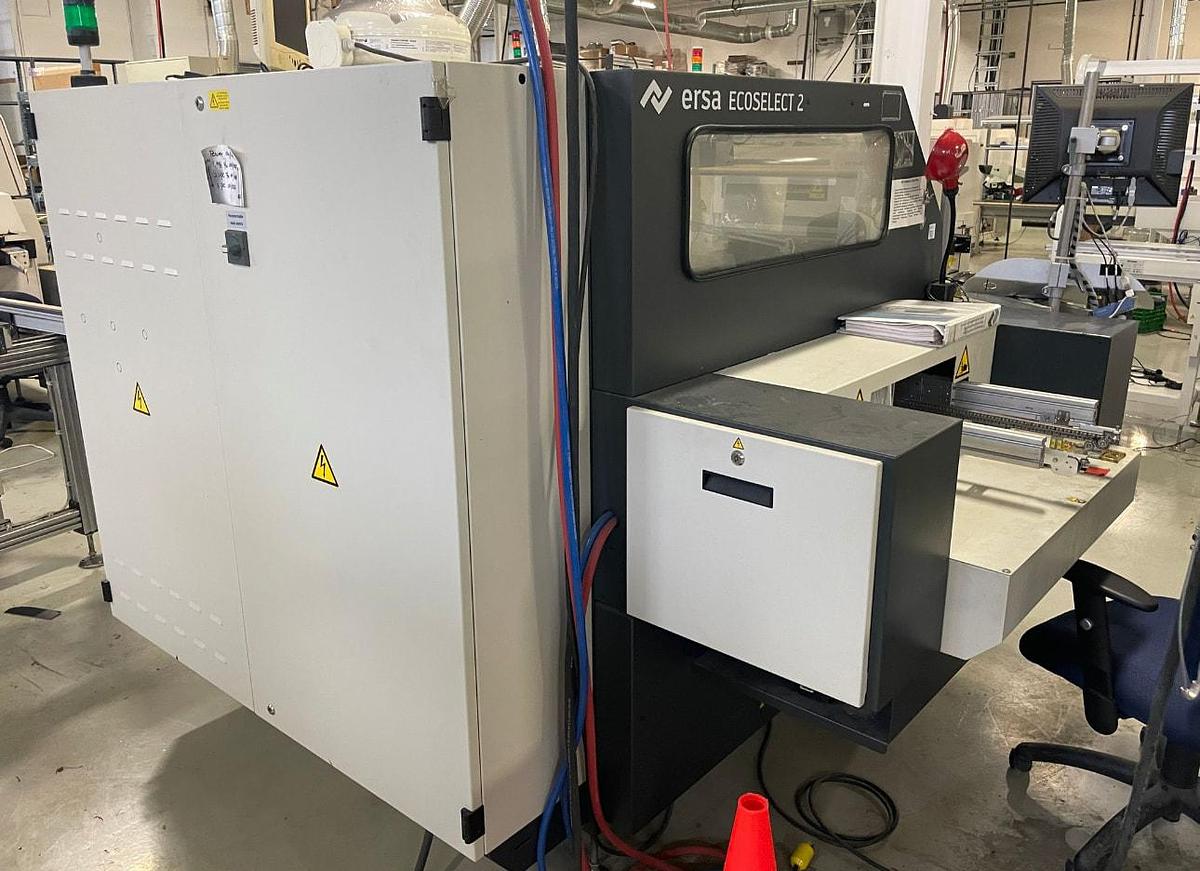

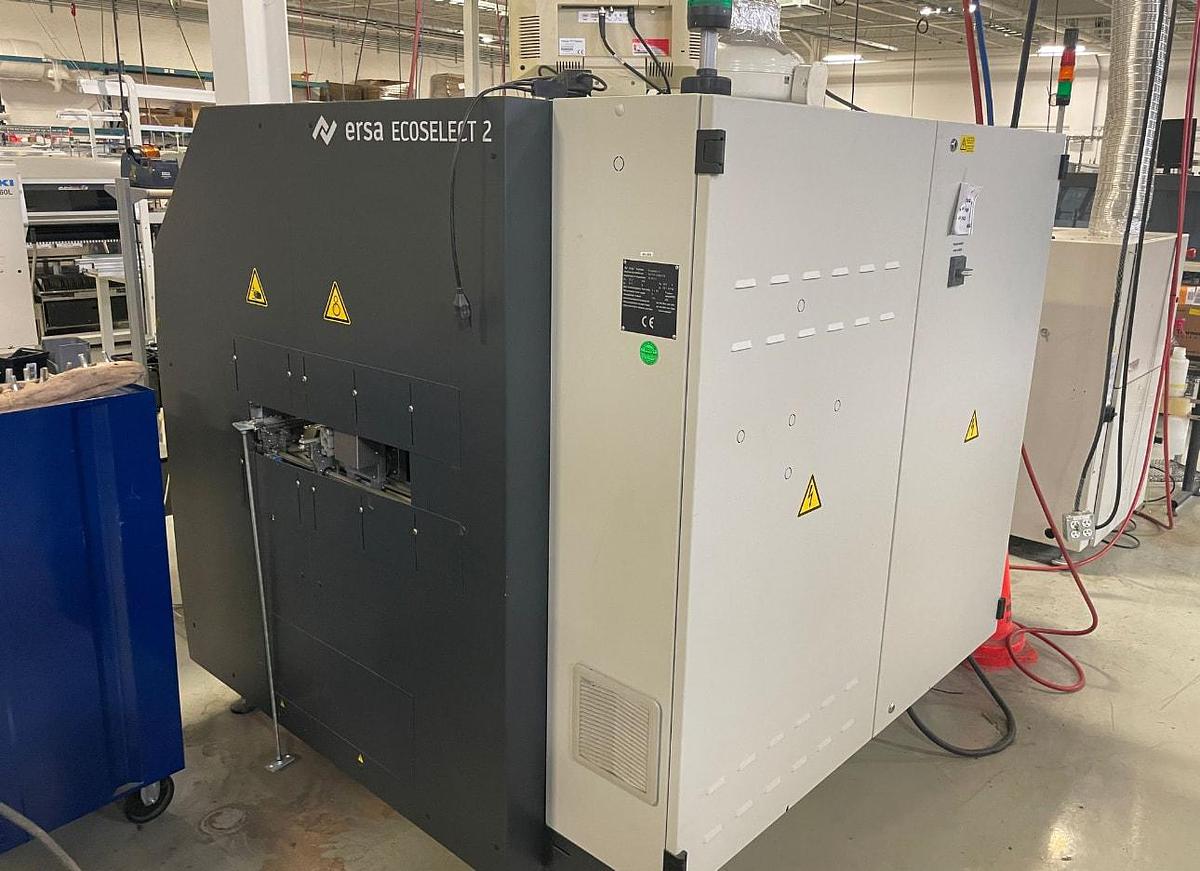

(SOLD) 2012 ERSA EcoSelect-2 PCB Selective Soldering System
Description
Dynamic top-side convection heater: 6 kW

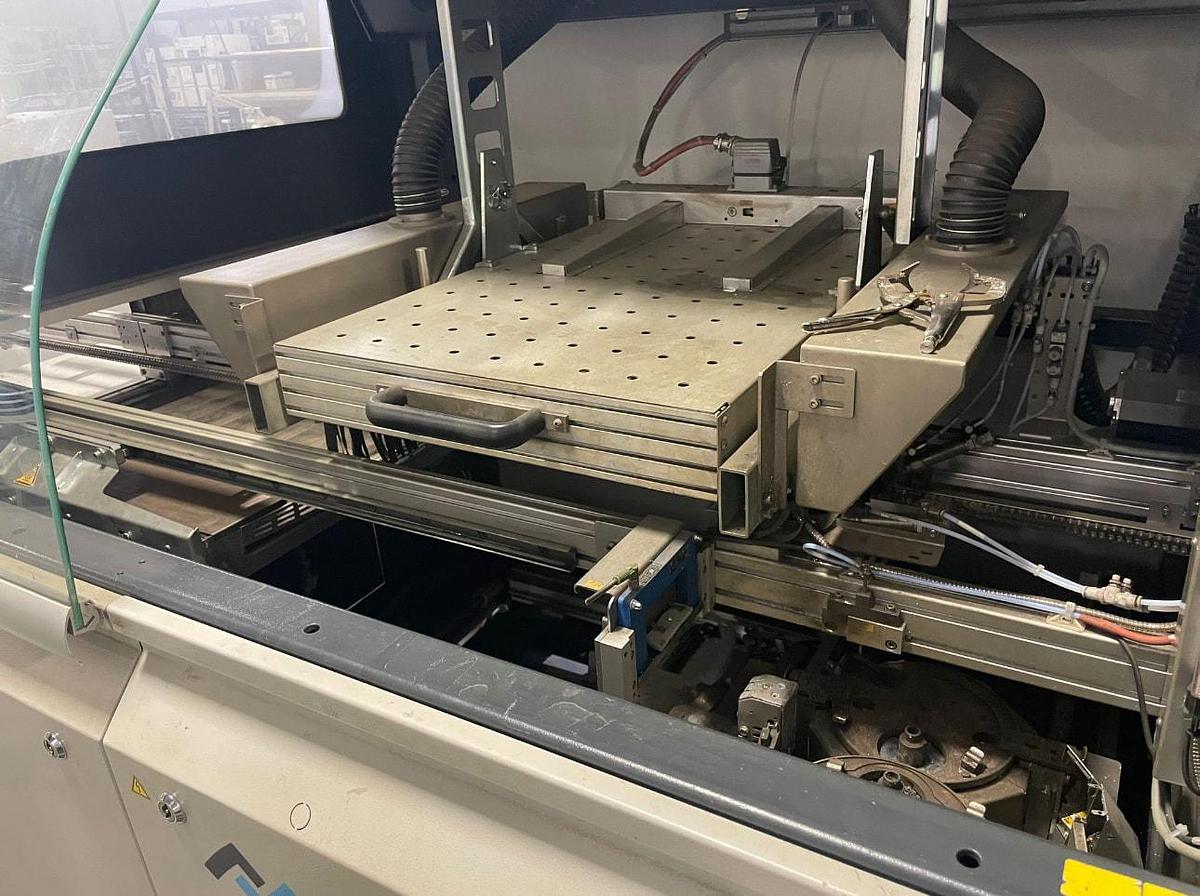

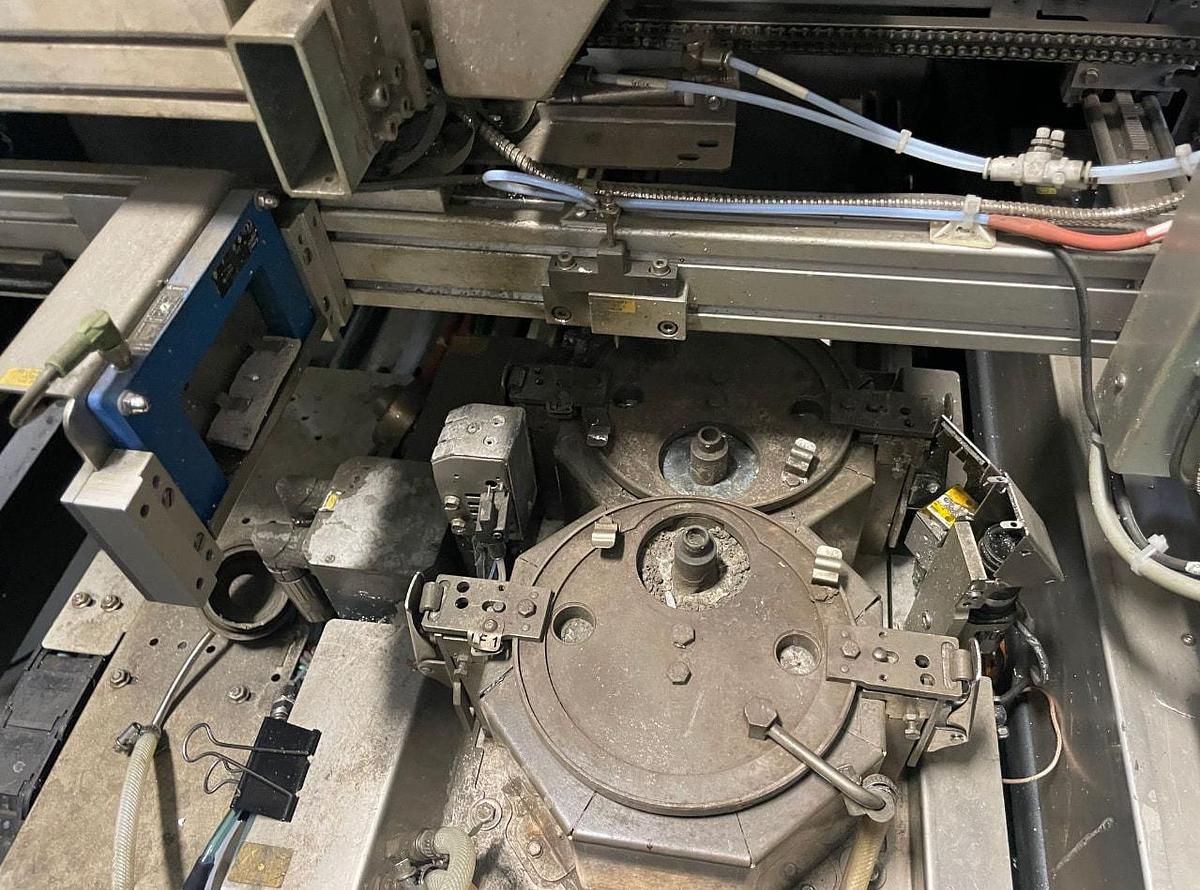

Stainless steel solder pot, integrated in a 3-axes positioning system (X/Y/Z), servo motor driven
Solder nozzle:Single-Point high-precision nozzle
Smallest solder nozzle diameter:OD 4.5 mm [0.2"] (further nozzles on request
Wave height:max. 5 mm [0.2"]
PCB clearance:min. 5 mm [0.2"]
Solder volume:approx. 13 kg [29 lbs] (Sn63Pb); approx. 12 kg [26 lbs] (lead-free alloy)
Solder temperature:max. 320 °C [608 °F]
Heating time:75 min (to 280°C) [to 536 °F]
Positioning speeds:X/Y: 2 - 200 mm/s [0.08 - 8"/s]; Z: 2 - 100 mm/s [0.08 - 4"/s]
Soldering speed:2 - 100 mm/s [0.08 - 4"/s]
Positioning accuracy:±0.25 mm [±0.01"]
Nitrogen technology:
Nitrogen supply:to be supplied locally
Nitrogen injection:N2 cover over the solder bath
Required pressure:4 bar [58 PSI]
Nitrogen consumption:approx. 1.5 m3/h [53 ft3/h] per solder pot
Particle cleanliness:5.0 recommended
Pneumatic system:Compressed air supply:
to be supplied locally
Required pressure:6 bar [87 PSI]
Consumption:< 5 m3/h [< 177 ft3/h]
Computer-based microprocessor (state-of-the-art control technology)
Process visualization
Input of all process parameters
Machine status control
Password function

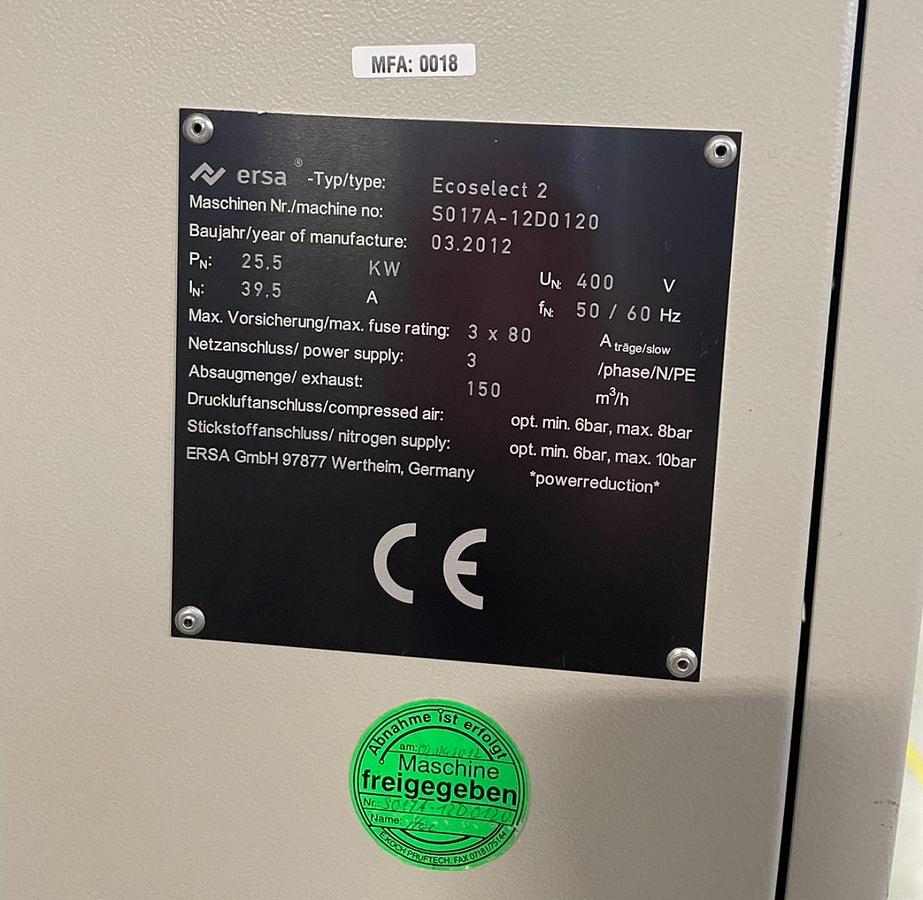

Electrical data:
5-wire system, 3 x 230/400 V, N, PE
Power tolerance range:±5 %
50/60 Hz
Power consumption:19 kW (basic machine incl. bottom-side preheating system)
3 x 35A
Machine exhaust (basic machine)
Exhaust stack:1 pc., OD 150 mm [6"]
Exhaust volume per stack:150 m3/h [196 yd3/h]
Ambient conditions / noise level
Ambient temperature:15 - 35 °C [59 - 95 °F]
Permanent noise level:< 60 dB (A)
Basic design & construction:
Solid steel construction
Security glass windows
Emergency-Stop button
Specifications
| Manufacturer | KURTZ ERSA Selective and Wave Solders |
| Condition | Used |
